Most soundproofing disappointment comes from specifying a thickness instead of a performance. Noise reduction depends on mass, on the two panes having different thicknesses so they do not resonate together, and on a damping interlayer. Get those three right and the difference is obvious; get them wrong and a thicker unit can perform worse.
The physics
What actually reduces noise
Heavier glass transmits less sound. Doubling the mass of a single pane buys a useful but modest improvement, which is why mass alone is an expensive route and rarely the whole answer.
Two panes of the same thickness resonate at the same frequency and let that frequency straight through. Pairing different thicknesses — say 6mm against 10mm — moves their resonances apart and closes that window. This single change often outperforms adding thickness.
A damping PVB interlayer between two panes converts vibration into heat rather than passing it on. It is particularly effective in the mid frequencies where speech and traffic noise sit, and it is what separates acoustic laminated glass from ordinary laminated glass.
In an insulated unit a wider cavity improves acoustic performance, which pulls against the optimum for thermal performance at around 16mm. Where both matter the make-up is a compromise, and it should be a deliberate one.
Practicalities
Getting it right on site
Sound takes the easiest route. An acoustic unit in a leaky frame, or beside an untreated trickle vent, will underperform badly. The frame, the seals and the reveal have to match the glass, or the glass is wasted money.
Specify the reduction you need in decibels against the noise source you actually have, because a specification that works against steady traffic may not work against aircraft or railway noise, which sit in different frequency bands.
A reading taken at the window over a representative period tells you how much reduction is needed. Without it, a specification is guesswork and the result is usually either underperformance or overspend.
An asymmetric insulated unit with an acoustic laminated inner pane and a low-emissivity coating delivers both acoustic and thermal performance in one product, which is normally cheaper than solving the two problems separately.
The TPRS product
TPRS Lamisafe

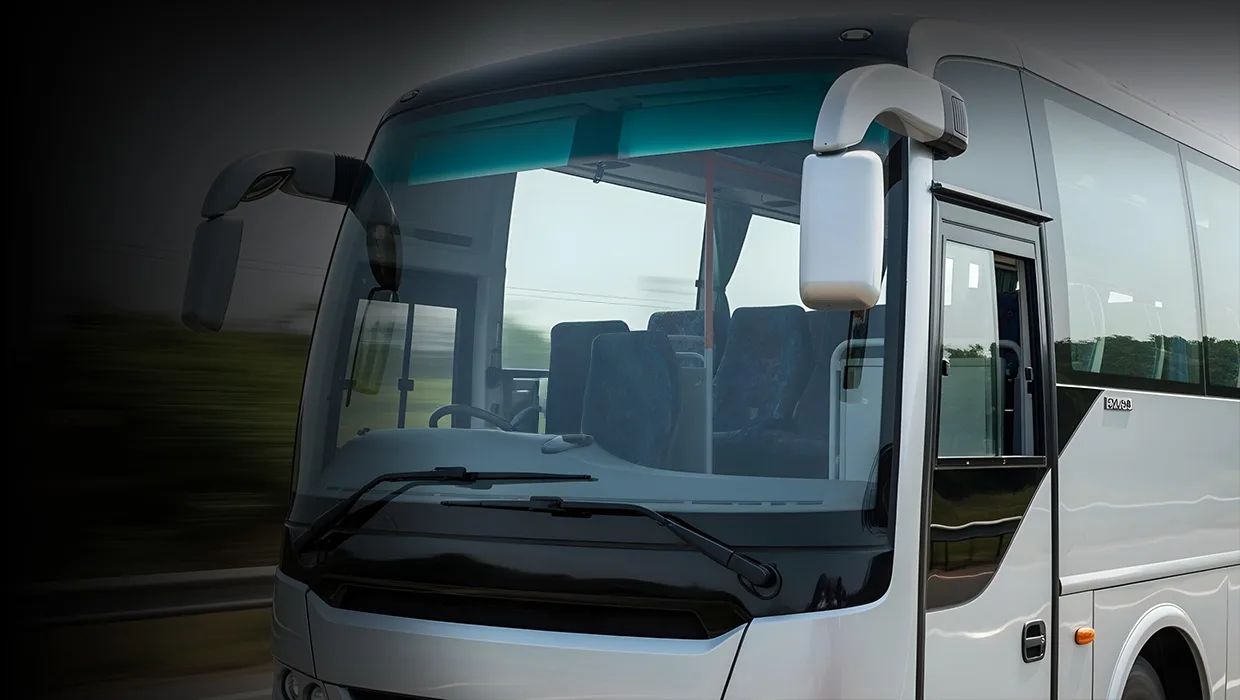

TPRS Lamisafe is a QNL-certified solution with high-performance laminated glass for strength, safety, and versatility. Our advanced lamination capabilities include utilizing PVB, SGP, or EVA interlayers in double or multi-layer formats to meet various structural and aesthetic demands. TPRS Lamisafe features upgraded technology, which includes dust-free clean rooms and automated interlayer processing, ensuring outstanding quality and clarity.
Sectors
Where TPRS supplies this
Glass Insights
FAQs
A standard double glazed unit is designed for heat, not sound, and a symmetric make-up such as 6-12-6 does comparatively little for noise because both panes resonate together. For meaningful reduction you want an asymmetric make-up with panes of different thickness, ideally with an acoustic laminated pane on one side.
Acoustic laminated glass bonds two panes with a specially formulated damping interlayer that absorbs vibration rather than transmitting it. It performs noticeably better than standard laminated glass of the same thickness, particularly across the speech and traffic frequency range.
It depends entirely on the make-up and on the frequency of the noise, which is why a single headline figure is misleading. The right approach is to measure the noise at the opening, set a target reduction, and let the glass specification follow from it. Ask for the rated performance of the exact make-up rather than a general claim.
No. Two panes of identical thickness resonate together and pass that frequency through regardless of how thick they are. An asymmetric pair, where one pane is thicker than the other, usually outperforms a heavier symmetric pair, and an acoustic interlayer improves it further.
It can, but the make-up differs from one aimed at road traffic because aircraft noise carries more low-frequency energy. Low frequencies are the hardest to stop and need mass and cavity width rather than interlayer damping alone. Specify against the measured source.
Glass Chronicles
Read next
Enquiries
Send the drawing, get a specification
Panel sizes, thickness, make-up and quantity are all TPRS needs to quote. Processing runs from two plants in Puducherry and Dharwad, with offices in Chennai and Bangalore.
