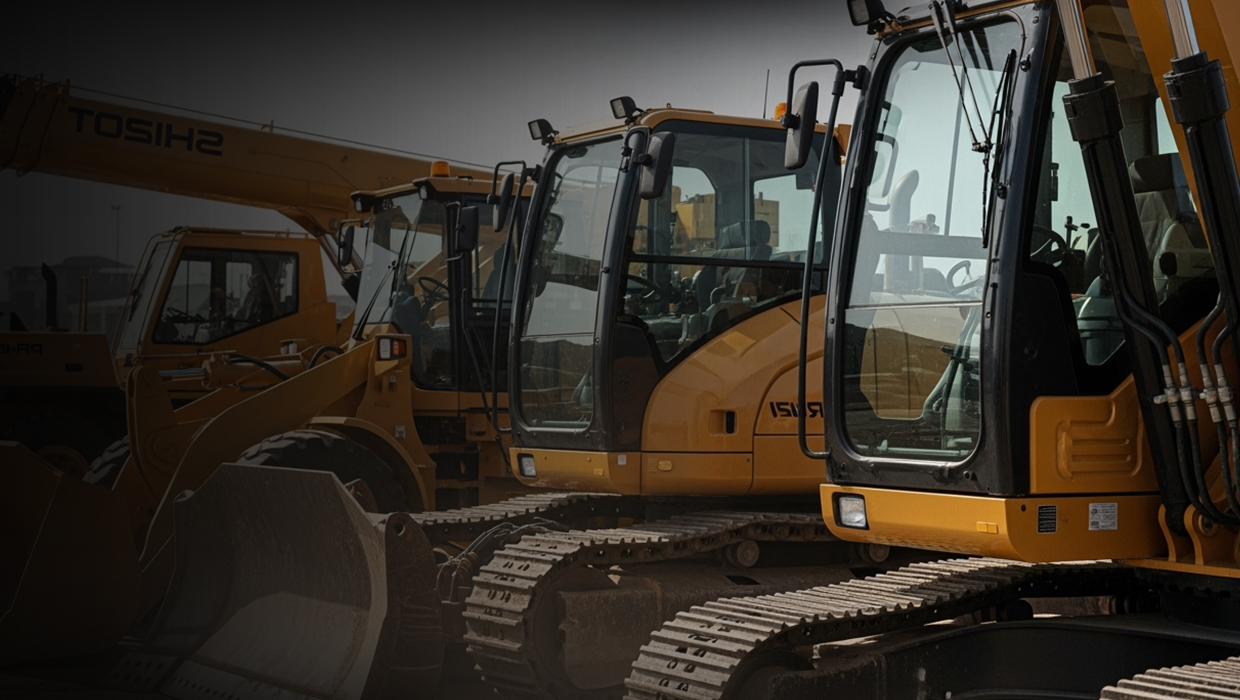

TPRS Glass delivers robust, high-performance glass solutions specifically engineered for earthmoving equipment operating in demanding construction and mining environments. Our specialized glass products for excavators, bulldozers, wheel loaders, graders, and other heavy machinery are designed to withstand extreme conditions including flying debris, harsh weather, temperature fluctuations, and high-impact situations. All glass products feature enhanced UV protection, anti-glare properties, and are designed to maintain structural integrity under vibration and extreme working conditions common in construction and mining operations.
At a Glance
1.2+ Lakhs
Machines
Glass In Action
Applications
-
Cabin Windows
-
Rear View Glass
-
Side Windows
-
Side Doors
-
Windshield
Glass Range
The glass used in earth movers
Operator cabin
What cab glazing has to survive
An operator cabin is one of the hardest environments glass is asked to work in. It is struck by debris, shaken continuously, sandblasted by dust, and left in full sun on an open site. Each of those loads pushes the specification in a different direction, and the glazing has to satisfy all of them at once.
Material falls onto plant and is thrown up by the machine's own work. The windscreen is normally laminated so that an impact cracks the pane without clearing the opening, which keeps the operator's forward view and keeps debris outside the cab. Where the cab structure itself is certified as a protective structure, the glazing and its fixing form part of that assembly and should not be substituted without checking what the certification covers.
Side and rear glazing is usually toughened rather than laminated, and that is deliberate. A toughened pane breaks into blunt granules and clears the aperture completely, which makes the rear window a usable escape route when a door is jammed or the machine has rolled. Specifying laminated glass everywhere would look safer on paper and remove that exit.
Plant vibrates constantly and the cab frame flexes under load, so glazing cannot be held rigidly. The bond line or gasket has to accommodate movement across the whole temperature range the machine sees. Edge quality matters more here than on a building: a chipped or poorly worked edge is a stress concentration, and continuous vibration will find it.
On quarry and demolition work the airborne load is abrasive, and wiper blades drag it across the glass. Surfaces haze over time, which is a visibility problem rather than a cosmetic one. Toughened glass cannot be polished or refinished after the furnace, so abrasion is managed through specification and wiper maintenance rather than repair.
A glazed cab on an open site is a greenhouse, and cabin temperature affects operator concentration and fatigue. Body tinted or solar control glass cuts the gain, but a tinted pane absorbs energy and runs hotter, so where part of it sits in shadow from the frame or a boom the temperature difference across the pane can crack annealed glass. Heat strengthened or toughened glass answers that.
Cab glazing is rarely rectangular. Curved corners, bonded edges, wiper spindle holes and mirror fixings all have to be formed before the glass is toughened, because nothing can be cut or drilled afterwards. This is why an accurate template or drawing, rather than a measured opening, is what a production order needs.
Glass Insights
FAQs
Primarily in Driver/Operator Cabins, including Windshields, Side Windows, Rear Glass, and Door Panels.
Excavators, Bulldozers, Dump Trucks, Backhoes, Loaders, Graders, Compactors, and Scrapers.
It ensures visibility, operator safety, weather protection, and improves comfort inside the cabin.
TPRS specializes in defogger windshields, rear defogger glass, laminated bend glass (L-shaped), sash windows, glass-in-glass assemblies, and toughened safety glass.
In construction, mining, airport ground support, agriculture, and infrastructure sectors.
Normally a laminated windscreen with toughened side and rear glazing. The laminated front keeps the pane in the opening after an impact so the operator retains forward vision, while toughened side and rear panes break into blunt granules and clear the aperture, which allows escape through the rear window if a door is blocked.
They are solving different problems. The windscreen has to stay in place when struck, so it is laminated and the fragments are held on an interlayer. The side and rear panes double as an emergency exit, so they are toughened and clear the opening completely when broken. Using laminated glass throughout would remove the escape route.
No. Toughened glass cannot be cut, drilled or notched after the furnace without shattering, and cab glazing usually carries curved edges, wiper spindle holes and fixing cut-outs. Production orders are made from a template or a drawing rather than from a measured opening.
